Thông tin chi tiết sản phẩm:
Tiếp xúc
nói chuyện ngay.
|
| Vật liệu: | Q345B/A572 | Tiêu chuẩn: | EN 1991-1-4 & EN 1993-3-1 |
|---|---|---|---|
| tiêu chuẩn mạ điện: | ASTM A123/ ISO 1461 | Ốc vít: | Lớp 6,8/4,8 |

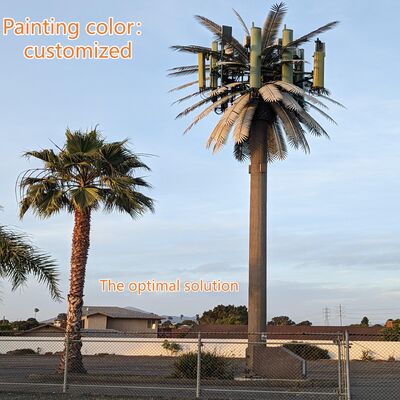

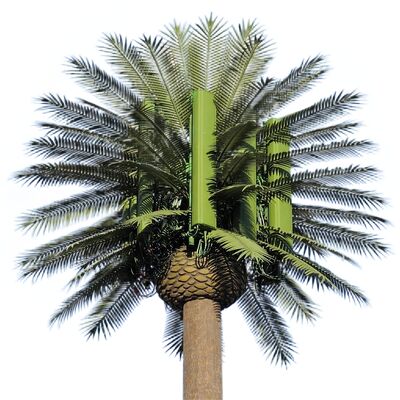

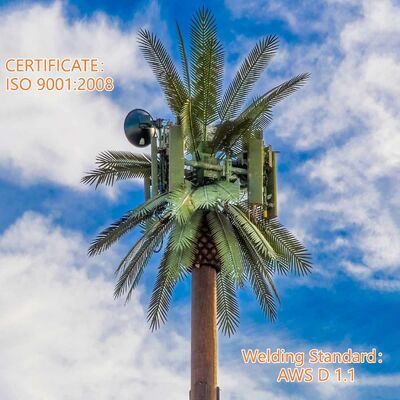

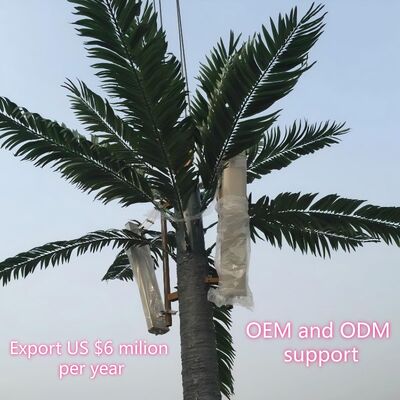

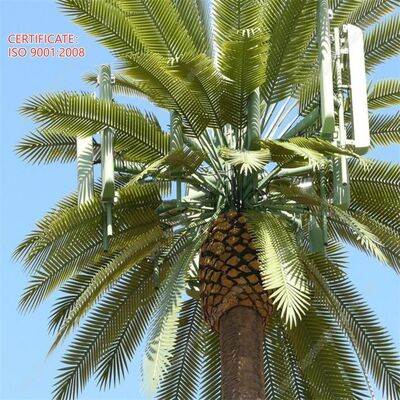

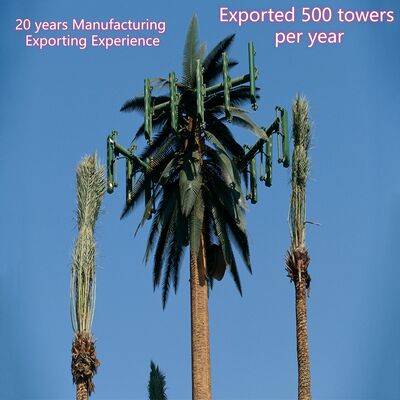

| Tháp quan sát cháy Tên sản phẩm: | Tháp viễn thông cây mô phỏng | Chiều cao: | 5-90m |
| Tốc độ gió: | >=60m/s | Tác động môi trường: | Thân thiện với môi trường |
| Thẩm mỹ: | Xuất hiện tự nhiên và thực tế | Trị giá: | Tiết kiệm chi phí so với tháp truyền thống |
| Làm nổi bật: | 45M simulated tree telecom tower,aluminum alloy bionic tree tower,30m LTE network eco-friendly tower |
||
JIAYAO CO., LTD.
1.Specifications
| Design | ||
| 1. Design Code | ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1 | |
| Structure Steel | ||
| 2. Grade | Mild Steel | High Tensile Steel |
| GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q355B, Q355C,Q355D | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |
| 3. Design Wind Speed | Up to 250 km/h | |
| 4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 355 | 235 |
| 7. Elongation (%) | 20 | 24 |
| 8. Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) |
| 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) | |
| 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) | |
| Bolts & Nuts | ||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 11. Standards for Dimensions | ||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |
| 11.2 Nuts | ISO4032, ISO4034 | |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |
| Welding | ||
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
| 13. Standard | AWS D1.1 | |
| Marking | ||
| 14. Method of marking of the members | Hydraulic Press Stamping | |
| Galvanizing | ||
| 15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
If you need it, we will welcome you 24 hours a day!
| Design | ||
| 1. Design Code | ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1 | |
| Structure Steel | ||
| 2. Grade | Mild Steel | |
| GB/T 700:Q235B, Q235C,Q235D | ||
| ASTM A36 | ||
| EN10025: S235JR, S235J0,S235J2 | ||
| 3. Design Wind Speed | Up to 250 km/h | |
| 4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
| 5. Tension strength (Mpa) | 360~510 | |
| 6. Yield strength (t≤16mm) (Mpa) | 355 | |
| 7. Elongation (%) | 20 | |
| 8. Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | |
| 27(0°C)---Q235C(S235J0) | ||
| 27(-20°C)---Q235D(S235J2) | ||
| Bolts & Nuts | ||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 11. Standards for Dimensions | ||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |
| 11.2 Nuts | ISO4032, ISO4034 | |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |
| Welding | ||
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
| 13. Standard | AWS D1.1 | |
| Marking | ||
| 14. Method of marking of the members | Hydraulic Press Stamping | |
| Galvanizing | ||
| 15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
